1. Before installation, please ensure the printer is connected and turned on!
2. Double click the "pkg" installer to begin. If the driver can not open, check the articles:
1-2-0.Initial Setup - MAC: Setting Security & Privacy before installing driver
3. Follow the installation steps until you receive "Installation was successful" message.
4. Click "

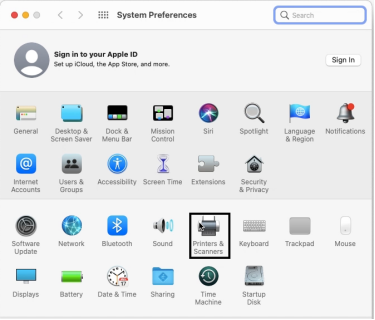

"and go to "System Preferences" -> select "Printer & Scanners"

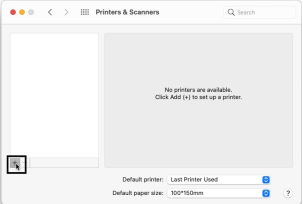

5. Click "+" to add a printer

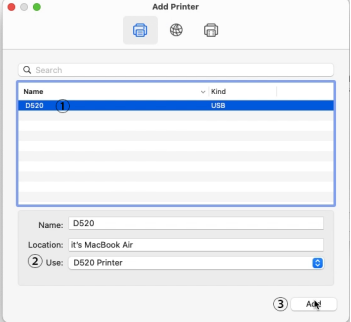

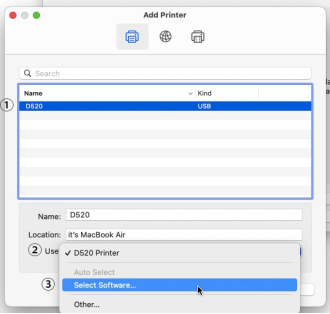

6. Select "D520"-> Click "Select Software " under "Use"

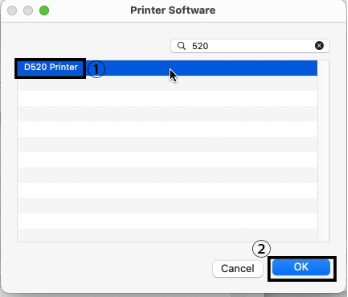

-> choose "D520" and click "OK "
-> Click "Add"

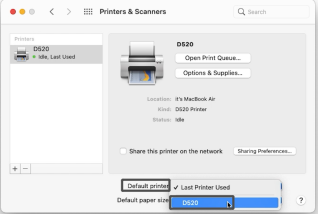

7. Set "D520" as default printer
Prepare before use
1. Open desired file (e.g. a PDF). Click "File" and choose "Print". Select "Show Details"
- 2. Choose a paper size from "Paper Sizes".

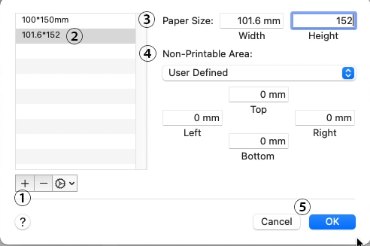

If the size you need is not listed, then click "Manage Custom Sizes". Click "+" to create a label size and rename. Input width and height, check all of "Non-Printable Area" are 0 in. Then click "OK".

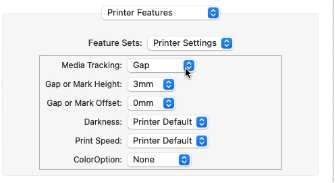

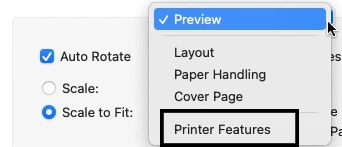

- 3. Select "Printer Features" in "Preview", you can set up printer properties, such as "Media Tracking", "Darkness" and "Print speed".
4. Select paper type in "Media Tracking". Choose from "Continuous", "Gap" or "Black Line".
5. You can change the printing speed and the Darkness of your printing
(Larger number means higher Darkness)
6. After setup, click "Print"
